From RAG to Agentic Retrieval

Why Retrieval Still Matters

Large language models are great at reasoning, but terrible at remembering everything.
Retrieval-Augmented Generation (RAG) solves this by pulling in external knowledge — but the basic pipeline is just the beginning.

In this post, I’ll walk through:

• Vanilla RAG (dense embeddings + cosine similarity)
• Advanced RAG (BM25, rerankers, HyDE)
• Agentic Retrieval (reflection + tool use)
• And how to measure all of this — with both traditional IR metrics and LLM-as-a-judge evaluations.

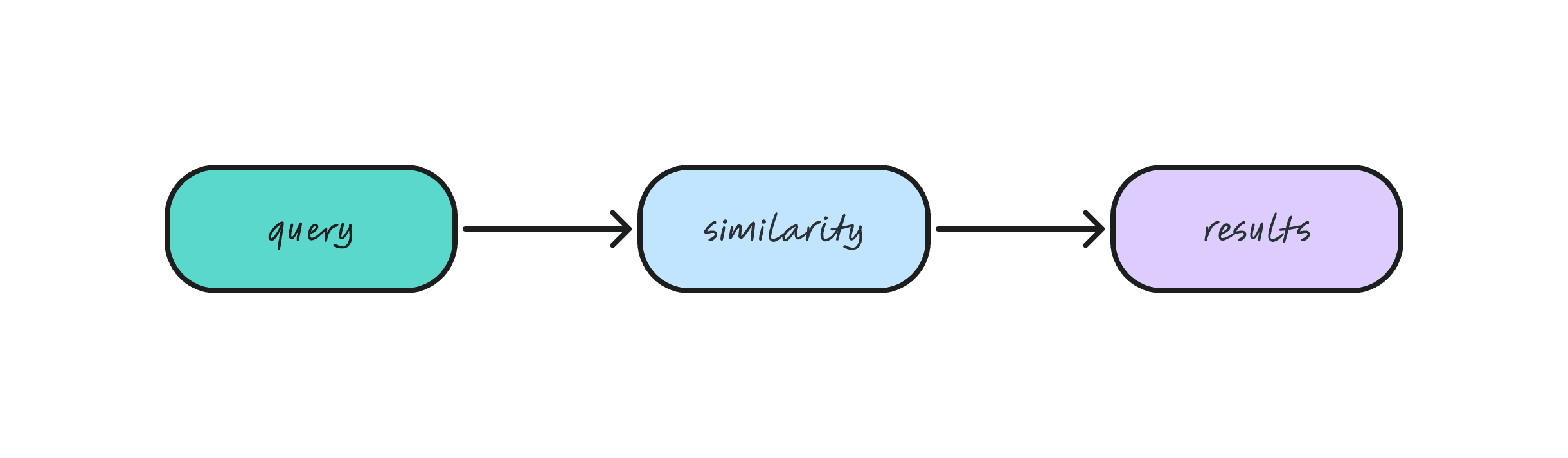

Vanilla RAG

At its core, RAG relies on dense embeddings:

1. A bi-encoder model maps the query into a vector.
2. The same encoder maps each document into a vector.
3. You compare them — usually with cosine similarity (how close the two vectors are in high-dimensional space).
4. Retrieve the top-k most similar documents (through FAISS or other vector stores).
5. Feed them into the LLM to answer.

Dense embeddings are the workhorse of simple RAG today: cheap, effective, and supported out-of-the-box by OpenAI, Hugging Face, and others.

But — if the retriever misses, the LLM has no chance.
And even with huge context windows (Anthropic’s 1M tokens, OpenAI’s 200k), you don’t just dump the whole database into the prompt.

• See Lost in the Middle: How Language Models Use Long Contexts - Liu et al. (2023): LLMs often fail when key info is buried inside long contexts.
• So retrieval still matters — it decides what the model sees.

Hybrid Retrieval & Reranking

Dense embeddings are powerful, but not the whole story. Advanced RAG combines multiple approaches:

BM25

• Built as an improvement over TF–IDF (term frequency–inverse document frequency).
• Normalizes document length and adjusts saturation of term frequency.
• For decades, BM25 was the gold standard of search engines — and still remains a strong baseline today.

Dense Embeddings

• As in vanilla RAG, encode query and doc separately, compare with cosine similarity.
• Capture semantic similarity better than BM25 alone.

Rerankers (Cross-Encoders)

• Unlike bi-encoders, a cross-encoder takes query + doc together and makes a joint relevance judgment.
• Much slower, but extremely accurate — perfect for reranking the top-50 candidates.

HyDE (Hypothetical Document Embeddings)

• Use an LLM to imagine a possible answer, embed it, and search with that instead of the raw query.
• Helps when the query is underspecified.

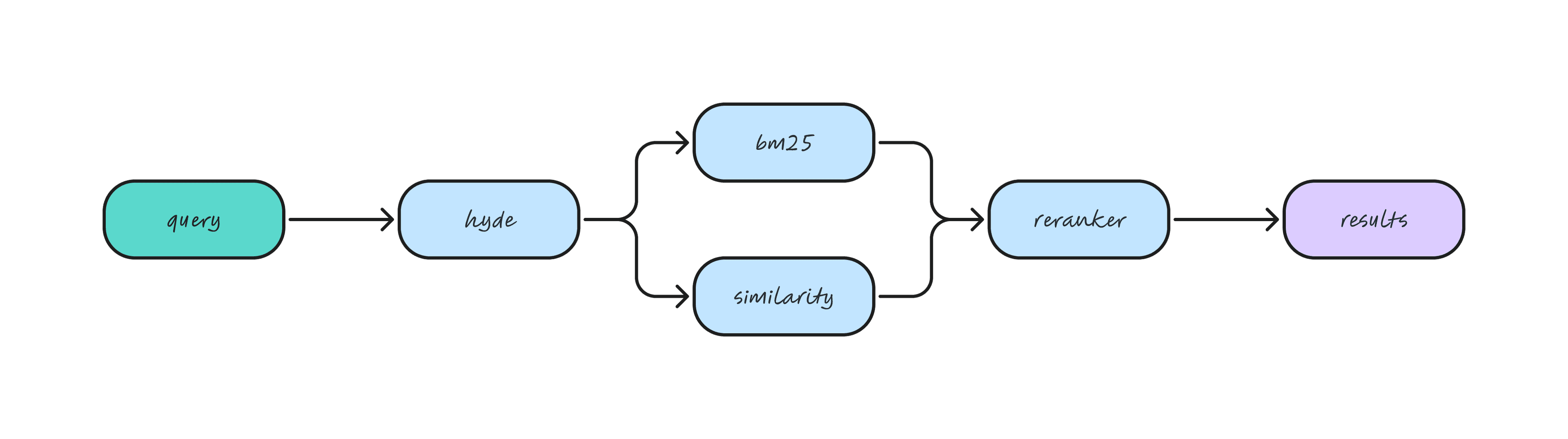

Pipeline:

1. HyDE: Imagine a possible answer, embed it, and search with that instead of the raw query.
2. Retrieve with BM25 + dense embeddings.
3. Rerank with a cross-encoder.
4. Feed the best passages into the LLM.

Measuring Retrievers

When evaluating retrieval methods, two standard metrics are used in information retrieval:

Recall@k

• Definition: What fraction of questions had at least one gold (relevant) document appear in the top-k retrieved results?
• Example: Recall@5 = 0.80 means in 80% of queries, at least one gold doc appeared among the top 5.
• Simple, intuitive, and heavily used in RAG practice (since if the gold isn’t in the context, the LLM can’t answer).

nDCG@k

• Short for Normalized Discounted Cumulative Gain
• Rewards systems not just for finding the right documents, but for ranking them higher.
• Formula:

where $rel_i$ is the relevance of the document at rank i (binary or graded).

where $IDCG@k$ is the maximum possible DCG (ideal ranking).

• Range: 0 → 1.
• Example: if a system retrieves the gold doc at rank 1, $nDCG@10 ≈ 1.0$; if at rank 10, the score is much lower.
• Popular in academic IR benchmarks, but less critical in industry RAG where all top-k docs go into the prompt.

What Do These Metrics Look Like in Practice?

Here are published $nDCG@10$ results (from BEIR: A Heterogenous Benchmark for Zero-shot Evaluation of Information Retrieval Models - Thakur et al. (2021)) across several datasets:

Table adapted from Thakur et al., "BEIR: A Heterogenous Benchmark for Zero-shot Evaluation of Information Retrieval Models" (2021).

Notes:

• BM25 = classic keyword search baseline.
• DPR = Dense Passage Retrieval (bi-encoder).
• Hybrid + CE = BM25 + dense retriever reranked with a cross-encoder.
• nDCG ranges 0 → 1. Higher = more relevant docs ranked higher.
• Datasets: Natural Questions (Kwiatkowski et al., CC BY-SA 3.0), FiQA-2018 (Maia et al., 2018), TREC-COVID (Voorhees et al., 2020; CORD-19, CC BY 4.0), HotpotQA (Yang et al., CC BY-SA 4.0)

Agentic Retrieval: Beyond One-Shot Search

Even with rerankers, RAG is brittle: if it misses once, you lose.
Agentic retrieval makes the system search actively.

• Reflection: “Did I find enough info?”
• Query reformulation: generate better or multiple sub-queries.
• Tool use: swap retrievers, rerank, or retry.
• Multi-hop reasoning: break a question into smaller steps.

This is where we move from a static “retrieval pipeline” to a dynamic retrieval agent.
In high level you can look at in the following way:

iterations = 0
while iterations < max_iterations:
    results = search(current_query)
    reflection = assess_quality(results)
    if reflection.needs_more_search:
        current_query = reformulate(original_query, reflection.feedback)
    else:
        break
    iterations += 1
answer = ask(original_query + all_results)

Benchmark Snapshot

I ran 100 questions from the HotpotQA dataset (Yang et al., CC BY-SA 4.0) through all three pipelines.
Evaluation: LLM-as-a-judge (factual correctness) — not strict EM/F1, but a semantic check that the generated answer matched the ground truth.

Takeaways

• Dense embeddings (cosine similarity) are the backbone of simple RAG.
• BM25 still matters: decades old, still competitive.
• Cross-encoders are perfect rerankers: slower, but more precise than bi-encoders.
• Chunking changes everything: sentence vs 1000-char blocks can make or break recall.
• Agentic retrieval is the big leap: reflection + tool use > any single retriever.

Next Up

We're done with fundamentals, now let's talk about MCP (Model Context Protocol): how to wire up retrieval, agents, and infra in a real product.

👉 Full code for the agent is available in my GitHub Repo
